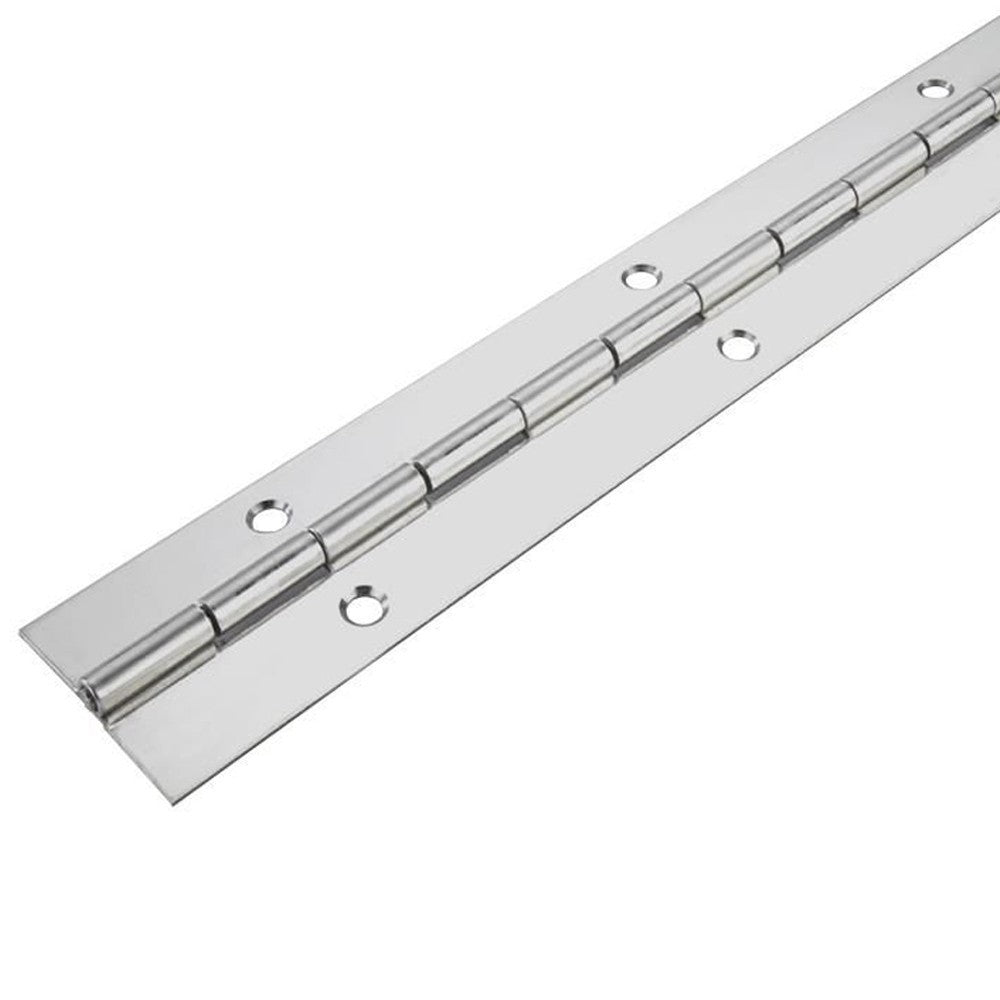

3606 Light Duty Piano Hinge - Stainless Steel - Bright Polished - In-line Holes 1829 x 38 x 0.9 x 2.3mm Pin

3606 Light Duty Continuous Hinge - Stainless Steel - Bright Polished - In-line Holes 1829 x 38 x 0.9 x 2.3mm Pin.
SKU: 4360658182946-PH

The 0.9mm (0.036", 20 gauge) hinge leaf thickness is the lightest and most economically priced continuous hinge in the range for general use. They have been produced by Cooke Brothers for over 100 years and are based on the needs of traditional cabinet makers for a high quality continuous hinge.

Continuous hinges are an ideal solution for many applications including cabinets, storage boxes and DIY projects. These light-weight continuous hinges provide a more delicate aesthetic for furniture and smaller applications; noticeably reducing the gaps between panels. They can finish off a piece of furniture nicely, with elegant, fine lines that don’t detract from the overall craftsmanship.

A - Hinge leaf thickness - 0.9mm
B - Hinge pin diameter - 2.3mm
C - Hinge open width - 38mm
L - Overall continuous hinge length - 1829mm
D - Hinge knuckle length - 15mm
E - Hole centres - 60mm
F - In-Line Holes. Countersunk No.4

All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.
