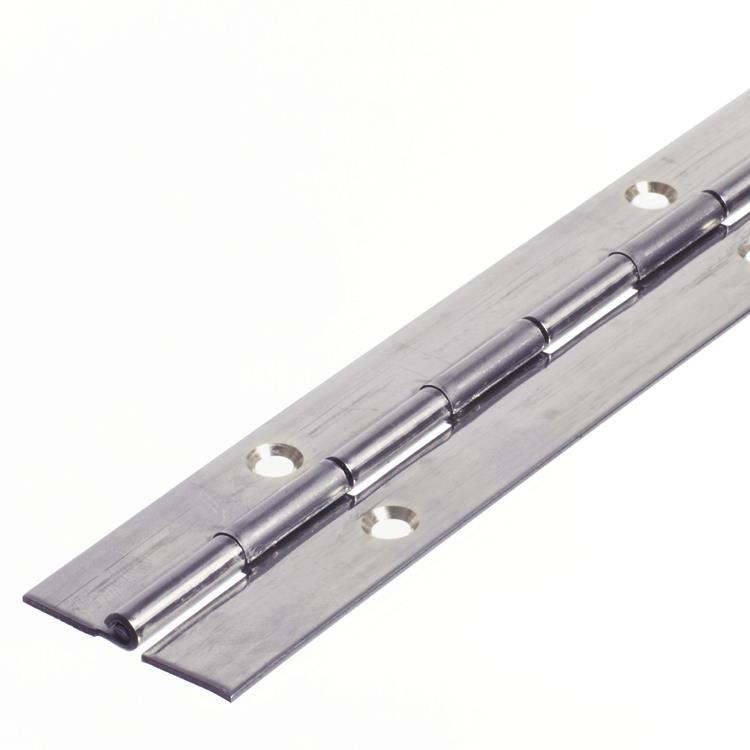

6406 Medium Duty Piano Hinge - Mild Steel - Zinc - In-line Holes 1829 x 38 x 1.6 x 3.3mm Pin

6406 Medium Duty Continuous Hinge - Mild Steel - Zinc - In-line Holes 1829 x 38 x 1.6 x 3.3mm Pin.
SKU: 464061618291C-PH

The 1.6mm (0.064", 16 gauge) hinge leaf thickness a middle weight of the thicknesses within the group of medium duty continuous hinges. A generally much sturdier hinge than the 1.2mm range, these products fulfil a wide range of commercial and engineering applications.

Hinge leaf thickness - 1.6mm
Hinge pin diameter - 3.3mm
Hinge open width - 38mm
Overall continuous hinge length - 1829mm
Hinge knuckle length - 25.4mm
Hole centres - 101.6mm
In-Line Holes. C'sk No.8 or plain hole 6mm dia
Material: Mild Steel (MS)
Finish: Bright Zinc

We offer mainland UK delivery for £7.20 and free delivery for orders over £60.

We also deliver to Northern Ireland and the Republic of Ireland.

Please contact us for details of international delivery and local collection.

Full delivery rates and information

• Phoenix Continuous Hinge Brochure
