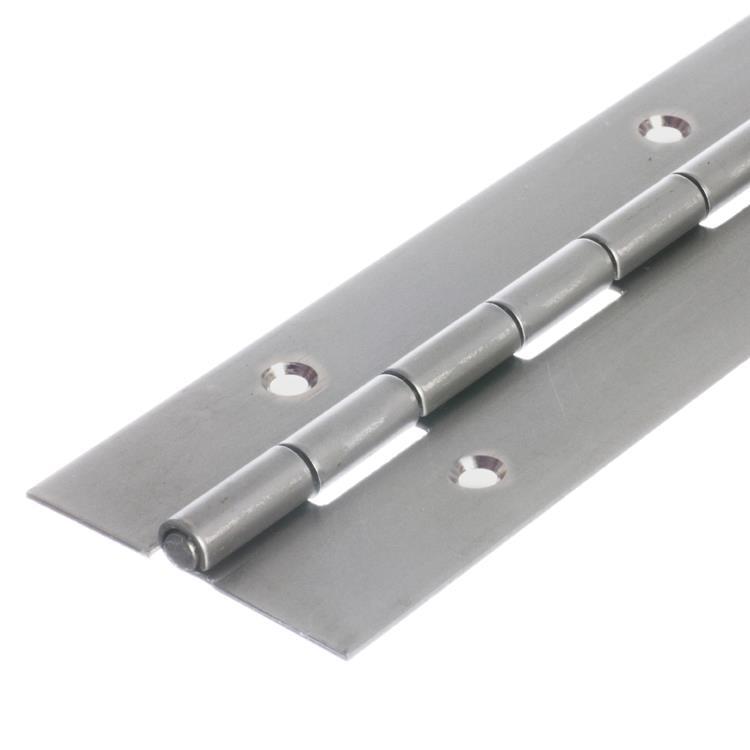

6432 Medium Duty Piano Hinge - Mild Steel - Self Colour - In-line Holes 1829 x 76 x 1.6 x 5.0mm Pin

6432 Medium Duty Continuous Hinge - Mild Steel - Self Colour - In-line Holes 1829 x 76 x 1.6 x 5.0mm Pin.
SKU: 4643211182906-PH

The 1.6mm (0.064", 16 gauge) hinge leaf thickness a middle weight of the thicknesses within the group of medium duty continuous hinges. A generally much sturdier hinge than the 1.2mm range, these products fulfill a wide range of commercial and engineering applications.

Hinge leaf thickness - 1.6mm
Hinge pin diameter - 5.0mm
Hinge open width - 76mm
Overall continuous hinge length - 1829mm
Hinge knuckle length - 25.4mm
Hole centres - 101.6mm
In-Line Holes. C'sk No.8 or plain hole 6mm dia
Material: Mild Steel (MS)
Finish: Self Colour
Holes: In-line Holes
