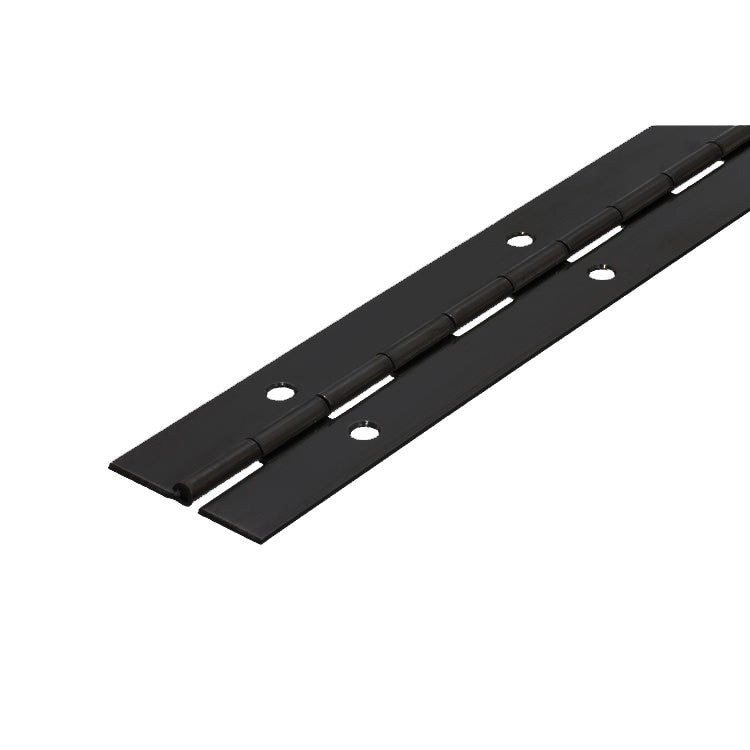

4810 Continuous Hinge - Length 1829mm - Width 50.8mm - Thickness 1.2mm - Stainless Steel - Black Powder Coat

Medium Duty Continuous Hinge - Stainless Steel - Black Powder Coat - Csk Holes 1829 x 50.8 x 1.2 x 3.3mm Pin.
SKU: 44810592182946-PH

The 1.2mm (0.048", 18 gauge) hinge leaf thickness is the lightest within the group of medium duty continuous hinges. Major advantages of this group of products over the light duty range are the increased firmness of the hinge itself, adding rigidity to the structure to which it is attached and the ability to take larger fixing screws.

D - Hinge knuckle length - 25.4mm
E - Hole centres - 101.6mm
F - In-Line Holes. C'sk No.6 or plain hole 4.9mm dia

All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.
