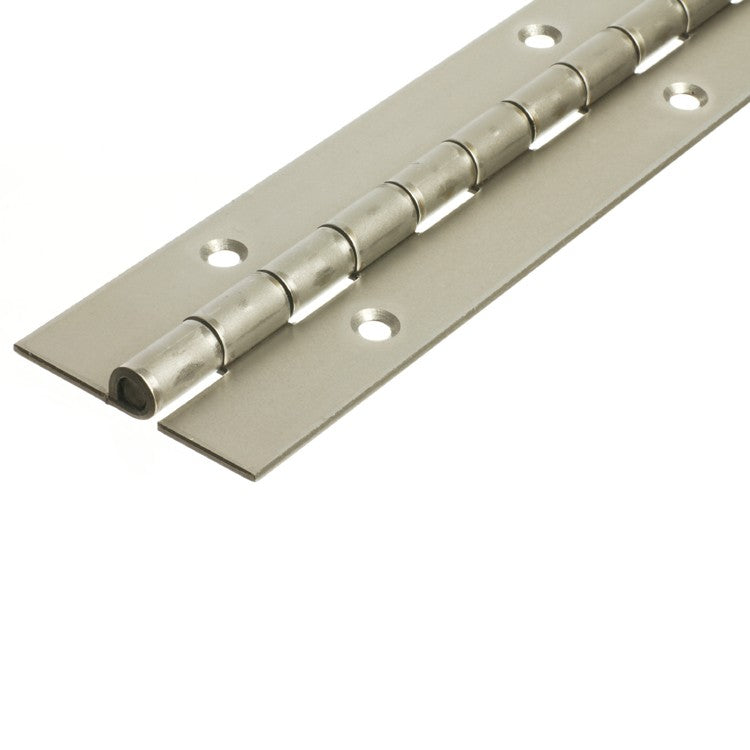

1208 Heavy Duty Piano Hinge - Stainless Steel - Self Colour - In-line Holes 1829 x 76 x 3 x 8mm Pin

1208 Heavy Duty Continuous Hinge - Stainless Steel - Self Colour - In-line Holes 1829 x 76 x 3 x 8mm Pin.
SKU: 4120851182946-PH

The 3mm (0.125", 10 gauge") Continuous Hinge represents the start of the heavy duty ranges, where strength and security are key considerations. These hinges are ideal for security applications, heavy doors, container lids and applications in arduous conditions.

A - Hinge leaf thickness - 3.0mm
B - Hinge pin diameter - 8.0mm
C - Hinge open width - 76mm
L - Overall continuous hinge length - 1829mm
D - Hinge knuckle length - 25.4mm
E - Hole centres - 101.6mm
F - In-Line Holes. #10 Woodscrew / M5 Machine Screw

All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.

We offer mainland UK delivery for £7.20 and free delivery for orders over £60.

We also deliver to Northern Ireland and the Republic of Ireland.

Please contact us for details of international delivery and local collection.

Full delivery rates and information

• Phoenix Continuous Hinge Brochure
