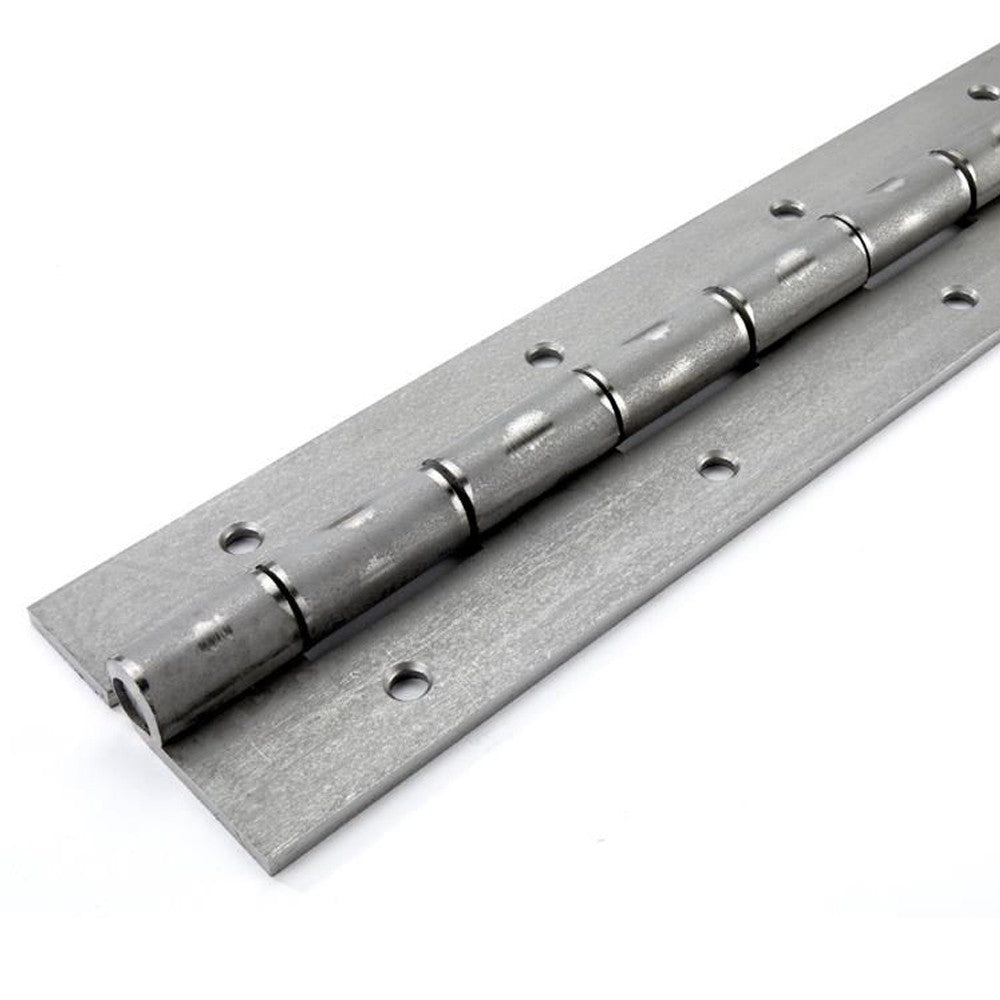

1610 Heavy Duty Piano Hinge - Stainless Steel - Self Colour - In-line Holes 1829 x 127 x 4 x 6.4mm Pin

1610 Heavy Duty Continuous Hinge - Stainless Steel - Self Colour - In-line Holes 1829 x 127 x 4 x 6.4mm Pin.
SKU: 4161051182946-PH

The 4mm (0.160", 8 gauge) is one of the largest Continuous Hinge sizes currently available. It is recommended for use on extra heavy duty applications such as large warehouse or commercial building doorsets, blast doors, heavy duty fabrications, industrial plant housings, etc.

A - Hinge leaf thickness - 4.0mm
B - Hinge pin diameter - 6.4mm
C - Hinge open width - 127mm
L - Overall continuous hinge length - 1829mm
D - Hinge knuckle length - 50.8mm
E - Hole centres - 101.6mm
F - In-Line Holes. Special Countersunk

We offer mainland UK delivery for £7.20 and free delivery for orders over £60.

We also deliver to Northern Ireland and the Republic of Ireland.

Please contact us for details of international delivery and local collection.

Full delivery rates and information

• Phoenix Continuous Hinge Brochure
