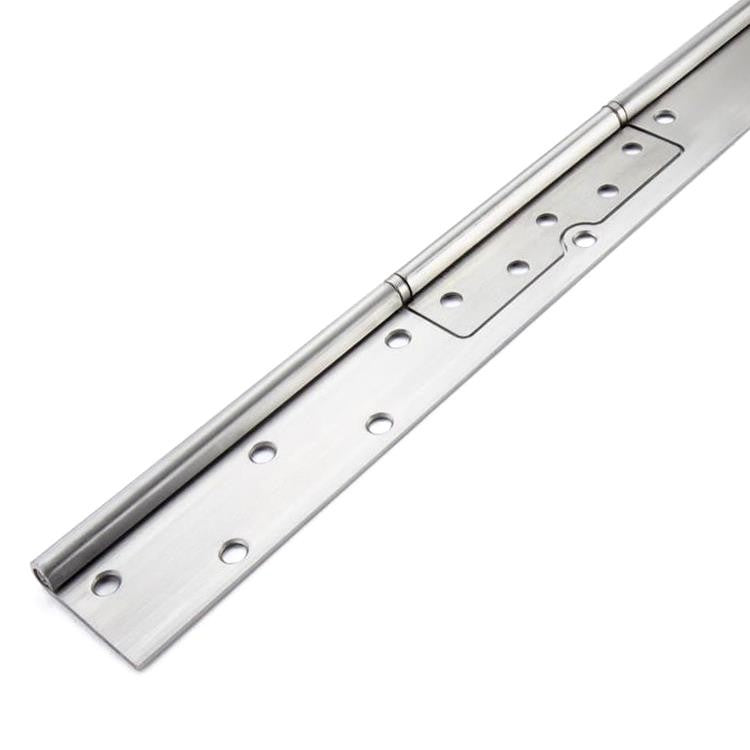

56135AL Interleaf Piano Hinge - Reduced Ligature - Stainless Steel - Satin Polished - Staggered Holes 2134 x 90.5 x 2.5 x 7mm Pin

56135AL Interleaf Continuous Hinge - Reduced Ligature - Stainless Steel - Satin Polished - Staggered Holes 2134 x 90.5 x 2.5 x 7mm Pin.
SKU: 56135589213401AL-PH

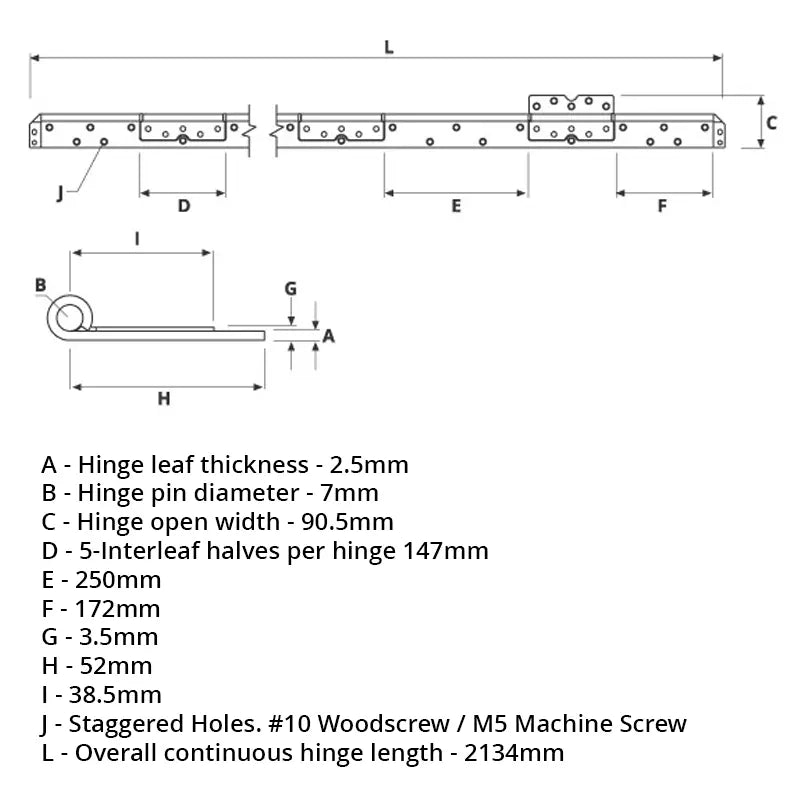

Hinge leaf thickness - 2.5mm
Hinge pin diameter - 7mm
Hinge open width - 90.5mm
Staggered Holes. #10 Woodscrew / M5 Machine Screw
Overall continuous hinge length - 2134mm
Material: Stainless Steel 304 (SS304)
Finish: Satin Polish

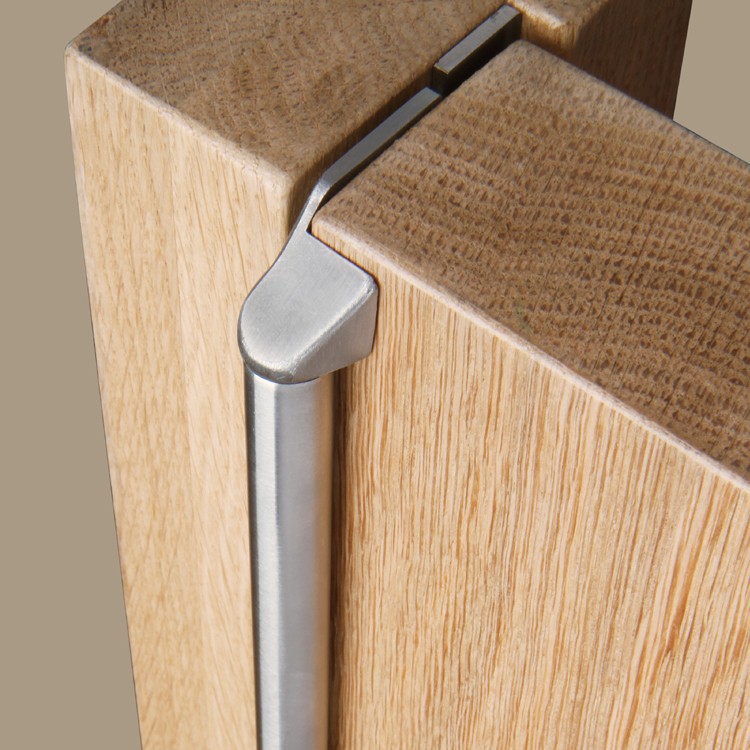

Security: Reduced Ligature

The innovative features of the Phoenix Interleaf hinge uniquely combines the strength of continuous fixing points along the entire length of the door, with the benefit of anti-finger trapping on the knuckle side, coupled with an aesthetically stylish and a streamlined sightline, purposely designed to enhance and compliment the visual appearance of any doorset.

Features include:

• Reduced Ligature
• Designed to cover the full length of the door
• Fitted with either wood screws or machine screws - tamper proof fasteners available
• High number of bearing surfaces, hence good load carrying capacity
• Maintenance free polymer bearings
• Aesthetically stylish
• Hinge pin removal when installed being virtually impossible
• The Interleaf hinge sits directly on door frame for minimal gap - 3mm gap instead of standard 12mm
• A combination of strength and anti-finger trapping on knuckle side
• No rebating required during fitting
• Tested to the latest ISO certification
• Tested to BS EN1935 Grade 14 (160kgs) & CE marked
• Compatible with 44mm and 54mm door thicknesses, timber and steel doorsets
• Intumescent kits available for use on Fire Doors.
