Cooke Brothers  |  SKU: 4781658182946-PH

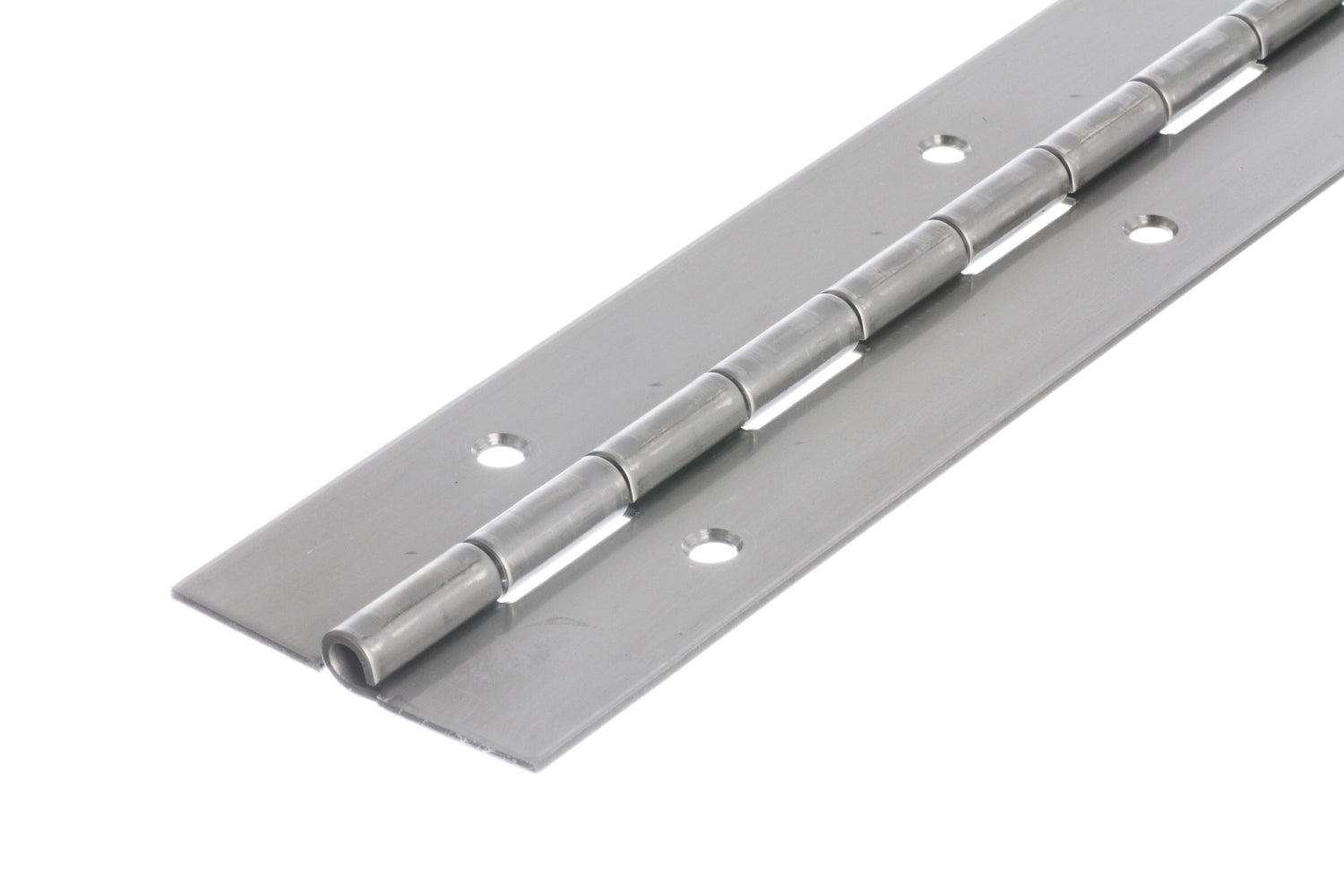

7816 Medium Duty Piano Hinge - Stainless Steel - Satin Polished - In-line Holes 1829 x 64 x 2.0 x 5.0mm Pin

£87.12
VAT Included (£72.60 excl. VAT)
Made to Order: 14 Day Lead Time

Product Description

7816 Medium Duty Continuous Hinge - Stainless Steel - Satin Polished - In-line Holes 1829 x 64 x 2.0 x 5.0mm Pin.
SKU: 4781658182946-PH

Hinge leaf thickness - 2.0mm
Hinge pin diameter - 5.0mm
Hinge open width - 64mm
Overall continuous hinge length - 1829mm
Hinge knuckle length - 25.4mm
Hole centres - 101.6mm
In-Line Holes. C'sk No.8 or plain hole 6mm dia

All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.

The 2.0mm (0.078", 14 gauge) hinge leaf thickness is the heaviest weight of the thicknesses within the group of medium duty continuous hinges. These hinges are regularly used in architectural ironmongery situations where continuous hinges for general usage doors is specified.
