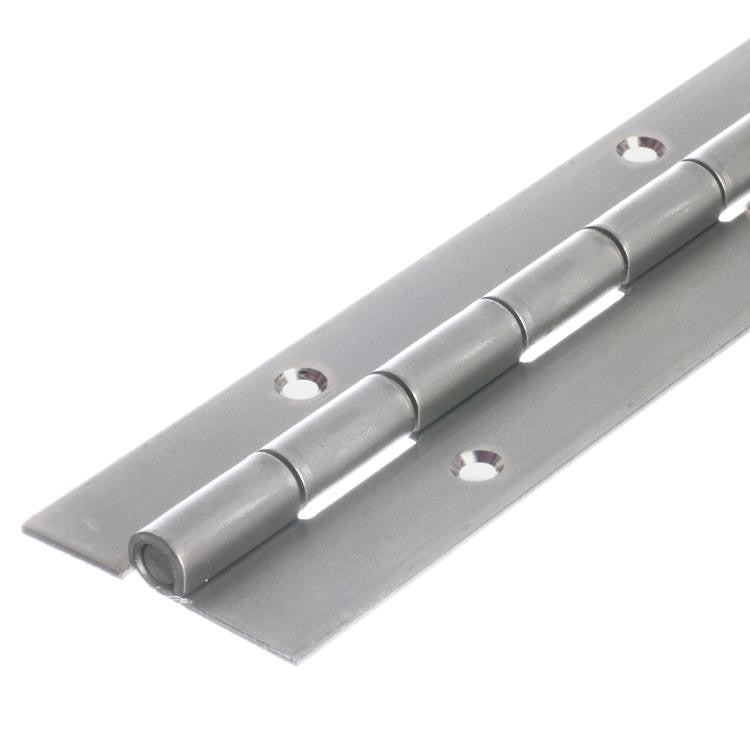

7822 Medium Duty Piano Hinge - Mild Steel - Zinc - In-line Holes 1829 x 51 x 2.0 x 6.3mm Pin

7822 Medium Duty Continuous Hinge - Mild Steel - Self Colour - In-line Holes 1829 x 51 x 2.0 x 6.3mm Pin.
SKU: 4782211182926-PH

Hinge leaf thickness - 2.0mm
Hinge pin diameter - 6.3mm
Hinge open width - 51mm
Overall continuous hinge length - 1829mm
Hinge knuckle length - 25.4mm
Hole centres - 101.6mm
In-Line Holes. C'sk No.8 or plain hole 6mm dia

All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.

The 2.0mm (0.078", 14 gauge) hinge leaf thickness is the heaviest weight of the thicknesses within the group of medium duty continuous hinges. These hinges are regularly used in architectural ironmongery situations where continuous hinges for general usage doors is specified.

We offer mainland UK delivery for £7.20 and free delivery for orders over £60.

We also deliver to Northern Ireland and the Republic of Ireland.

Please contact us for details of international delivery and local collection.

Full delivery rates and information

• Phoenix Continuous Hinge Brochure
