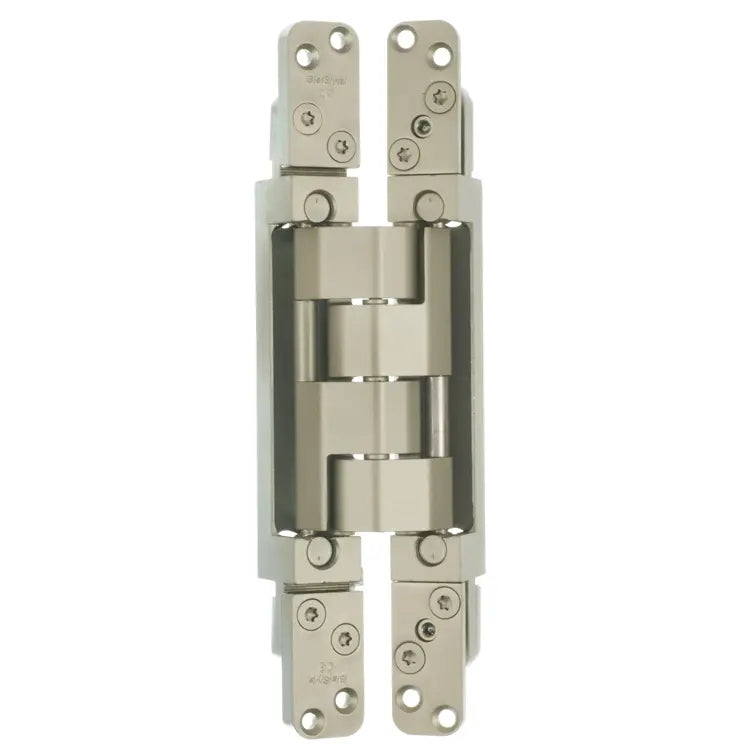

Pivota DX300 3D Fully Concealed Adjustable Hinge - Mild Steel - Satin Nickel Finish

Pivota DX300 3D Fully Concealed Adjustable Hinge - Mild Steel - Satin Nickel Finish
SKU: 3PIV-DX-300-3D-0-SNP-037918-PH

Certification: CE & UL
Material: Mild Steel (MS)
Door Thickness: 44mm
Door Weight: 300kg
EN 1935 Grade: Grade 14 160kg
Fire Rating: FD60
Finish: Satin Nickel
Short Code: DX300
Virtual Throw: 14.5mm

Concealed hinges give your door a seamless appearance with clean lines, uninterrupted by protruding hinge knuckles. They are the ideal choice both in terms of creating a modern, sleek look and maximising safety and security. With no protruding hinges the door system offers anti-burglary and reduced ligature benefits.

Maximum door weight 300 kg (per pair)
Concealed hinge for non-rebated doors
Hinge leaves are mortised into frame and door
3-dimensional adjustability
Maintenance-free bearings
Suitable for use on timber, steel and aluminium door systems.

Available accessories:
Receiver Plate for Steel Frame
Hinge Retainer Plate for Casing and Steel Frames

Installation accessories:
Universal Routing Kit
Router Template (2 Part Door & Frame)
Intumescent Kit (White or Black)
